    Microswitch LXW-515R

    Ask Lasest Price
    Brand Name : NNC
    Certification : ROHS, UL, CE
    Model Number : LXW-515R
    • Product Details
    • Company Profile

    Microswitch LXW-515R


    LXW-515R Microswitch

    Specification:


    Operating speed: 0.01 mm ~ 1 m/s

    Mechanical life:240 times/ min Electrical:20 times / min
    Contact Resistance:<15mΩ

    Insulation Resistance:>100MΩ ( <DC500V )

    Electrical data:AC380V,220V/1.5A DC220V/0.3A

    Conventional heating current: 15 A

    Withstand voltage: 1890 v between the terminals, 50/60 hz 1 min

    Terminal and the charged metal between 2500 v, 50/60 hz 1 min

    2500 v between terminal and earthing, 50/60 hz 1 min

    Vibration: misoperation durable: 10 hz ~ 55 hz, 1.5 mm double amplitude

    Impact: mechanical endurance: 1000 m/S2 misoperation durable: 300 m/S2

    Ambient Temperature :-10℃ ~+80℃ Humidity: < 90%RH
    Mechanical life :>107 Electrical life :>5*105

    The characteristics

    Fine spring type button

    High opening and closing capacity (10 A)

    High accuracy

    Wide operating speed range

    Shell coated reinforcement glue, waterproof, prevent oil, high mechanical strength.

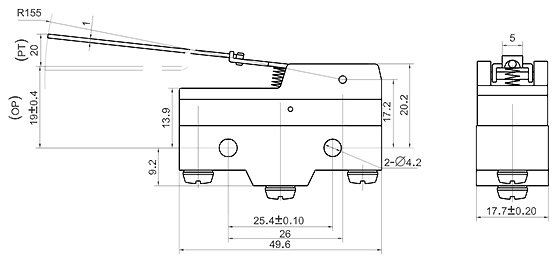

    Dimension


    Microswitch LXW-515R
