    Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V

    Ask Lasest Price
    Brand Name : NNC
    Model Number : P41F05-E-24V
    Certification : UL
    Price : USD 0.94-1.07
    Payment Terms : T/T, L/C
    Supply Ability : 30k pcs 7 days
    Delivery Time : 8-15days
    • Product Details
    • Company Profile

    Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V

    P41F05-E-24V Relay Socket for NNC41
    1 产品类型(TYPE MODEL)
    特性(Characteristics)
    1Z(1C 转换 changge over)
    安装方式(Installation mode): 导轨安装型 Guide rail mounting type
    2 性能(PERFORMANCE)
    2.1 负载(Load):
    负载电流(Load current)8A
    负载电压(Insulation voltage)300V
    2.2 介质耐电压和绝缘电阻(DIELECTRIC STRENGTHS AND INSULATION RESISTANCE):
    2.3 螺纹旋紧扭矩(Thread tightening torque):0.5N.m
    2.4 连接导线(Connecting Wire):AWG20-14(0.5~2.5mm²)
    2.5 整体插拔力(Integral insertion and removal force):1Z≤60N
    2.6 耐腐蚀(Corrosion resistance):满足 GB/T2423.17-2008 盐雾试验要求,试验周期 24h
    Meet the requirement of GB/T2423.17-2008 salt spray test, Test period 24h
    2.8 使用环境(Operating environment):-40℃~+85℃
    3 标志(MARKING)
    3.1 外壳颜色(CRUST COLOR):灰白 (White)
    3.2 标志位置(MARKING POSITION):侧面(Beside the body )
    3.3 字符颜色(INK COLOR):黑(Black)

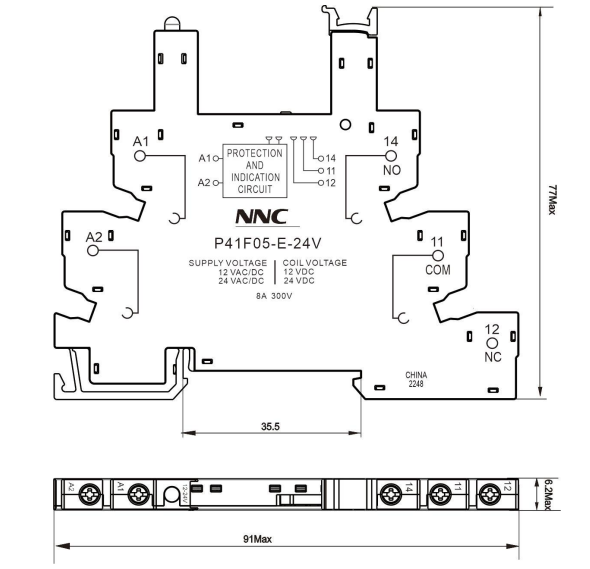

    4 外形安装接线图(Outline installation wiring diagram)
    Certificate

    Certificate

    Shipment & Packaging

    Shipment & Packaging

    PackingInner BoxPaper box(pcs)50
    Outer BoxPaper box(pcs)500
    Dimension of the cartonCTN360*210*325mm
    Weight1pcApproximate:33G
    1ctnG.W:16.7KG N.W:15.7KG

    FAQ

    FAQ


    Q1: Are you Factory?
    A1:Yes,we focus on relay and micro switch more than 13years.


    Q2: How do you control the products' quality?
    A2: Auto inspection machine and manual testing together before packing.


    Q3: What's your payment term?
    A3:We usually accept T/T(30% deposit,the balance before delivery.)


    Q4: Would you accept to use our logo?
    A4: If you have good quantity,we can make OEM for you.


    Q5: Can I get a sample for reference?
    A5: We provide free samples for testing,you only need to pay the express cost.


    Q6: What is your delivery time?
    A6: Usually it takes 20-35 working days for production.


    Q7: What is your warranty time of the products?
    A7: 12-24 months
