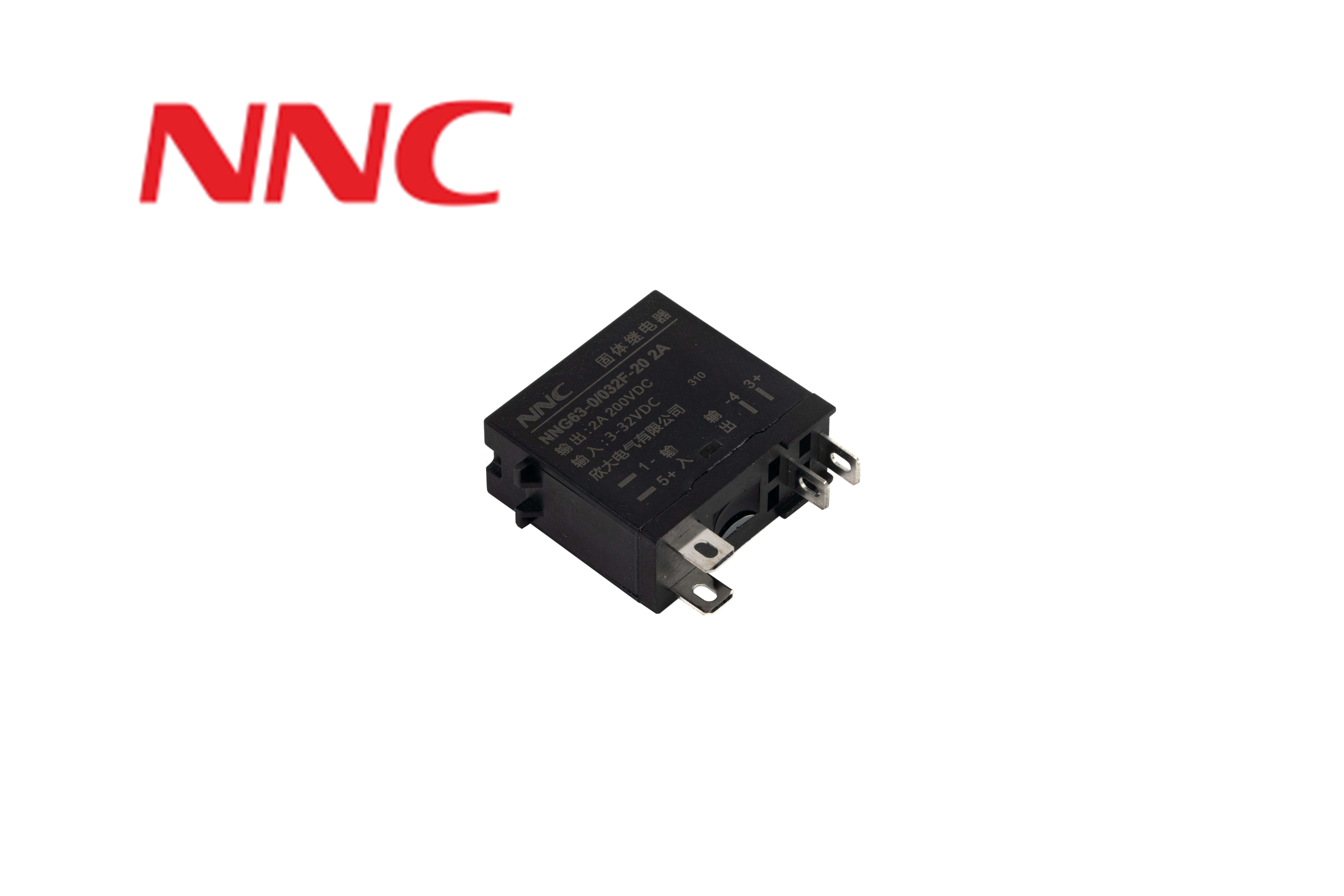

    NNC NNG6 series Solid State Relay Superior Performance for Industrial Applications

    Ask Lasest Price
    Brand Name : NNC
    Model Number : NNG62-1/032F-38 1-4A
    Certification : UL/TUV/CQC
    Price : USD 1.72~1.78
    Payment Terms : T/T, L/C
    Supply Ability : 30k pcs 7 days
    Delivery Time : 8-15days
    • Product Details
    • Company Profile

    NNC NNG6 series Solid State Relay Superior Performance for Industrial Applications

    NNG6 Series Solid State Relay
    Features
    2500VAC dielectric strength between input and output
    Alternative type of the relay NNC69K 1NO model
    PCB terminals/Plug-in socket terminals
    Zero-crossing for AC output
    Load current up to 4A
    ORDERING INFORMATION
    *Note: Not all combinations of current and voltage are available
    NNG6 2 - 1 / 032F -38 4A ***
    1.NNG6 series:
    2.Terminals: 2: PCB terminals; 3: Plug-in terminals;
    3.Load power supply: 0: DC Output; 1: AC Output;
    4.Control voltage: 032F: 3-32V DC Input
    5.Load voltage: 20: 12-200VDC; (Only for DC output) 22: 24-240VAC; 38: 24-440VAC; (Only for AC output)
    6.Rated load current: 1-4A
    7.Special code: ***: Customer Special Requirement; Blank: Standard

    Certificate

    Certificate

    Shipment & Packaging

    Shipment & Packaging

    PackingOuter BoxPaper box(pcs)400
    Dimension of the cartonCTN
    400×265×355mm
    Weight1pcApproximate:17G
    1ctnG.W:16KG N.W:15KG

    FAQ

    FAQ


    Q1: Are you Factory?
    A1:Yes,we focus on relay and micro switch more than 13years.


    Q2: How do you control the products' quality?
    A2: Auto inspection machine and manual testing together before packing.


    Q3: What's your payment term?
    A3:We usually accept T/T(30% deposit,the balance before delivery.)


    Q4: Would you accept to use our logo?
    A4: If you have good quantity,we can make OEM for you.


    Q5: Can I get a sample for reference?
    A5: We provide free samples for testing,you only need to pay the express cost.


    Q6: What is your delivery time?
    A6: Usually it takes 20-35 working days for production.


    Q7: What is your warranty time of the products?
    A7: 12-24 month
