    Clion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJ

    Ask Lasest Price
    Brand Name : NNC
    Model Number : NNC68BVL
    Certification : CE, UL, TUV, CQC
    Price : Get Latest Price
    Payment Terms : TT, L/C
    Supply Ability : 500,000 pieces per month
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    Clion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJ

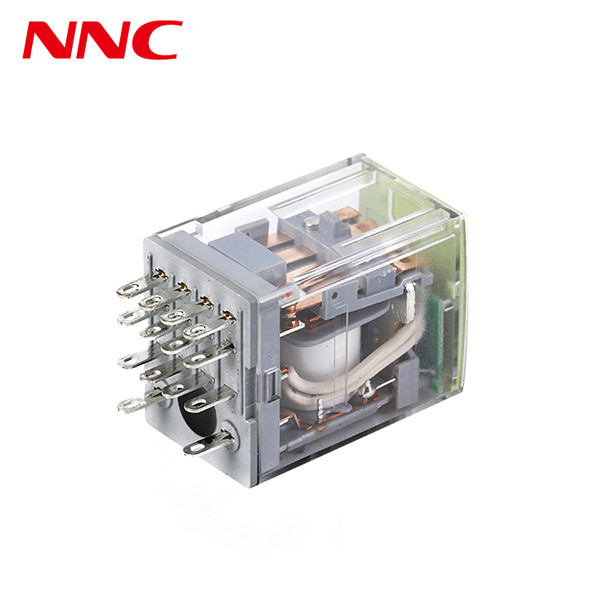

    NNC68BVL Miniature Intermediate Power Relay
    Clion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJ
    Clion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJClion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJ
    Clion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJ

    Specification

    Part NO.NNC68BVL(HH52P, HH54P)
    Dimension27.3*21*36.2
    Contact FeatureForm2A,2B,2C4A,4B,4C
    Rated load

    6.5A/240VAC 28VDC

    10A/240VAC 28VDC

    5A/240VAC 28VDC
    Contact resistance≤100mΩ
    MaterialSilver Alloy
    Electrical life
    ≥1*105
    Mechanical life
    ≥1*107
    Operate voltage (23℃)DC:≤75%*Rated voltage
    AC:≤80%*Rated voltage
    Release voltage (23℃)DC:≥10%*Rated voltage
    AC:≥30%*Rated voltage
    Maximum voltage (23℃)110%*Rated voltage
    Normal coil voltageDC3-220V
    AC3-380V
    Normal coil powerDC0.9W
    AC1.2VA
    Pick-up time≤15ms
    Release time≤10ms
    Dielectric strengthBetween Same-pole contacts1000VAC/1min(leakage current 1mA)
    Between Opposite-pole contacts1000VAC/1min(leakage current 1mA)
    Between contacts and coil1500VAC/1min(leakage current 1mA)
    Insulation resistance≥100mΩ(500VDC)
    Ambient temperature-25℃ ~55℃
    Ambient humidity45%-75%RH
    Atmospheric pressure86-106KPa
    Shock resistance10G (sinusoidal half-wave pulse: 11ms)
    Vibration resistance10-55Hz (double amplitude: 1.0mm)
    InstallationPCB,SOCKET
    PackingInner boxPaper box(pcs)20
    Foam box(pcs)50
    Outer boxPaper box(pcs)600
    Foam box(pcs)500
    Dimension of the carton600PCS CTN330*310*345MM
    500PCS CTN440*310*345MM
    Weight1PCApproximate 35g
    600PCS CTNG.W:22KG N.W:21KG
    500PCS CTNG.W:19KG N.W:18KG

    Wiring Diagram

    Clion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJ


    Clion industrial control relay NNC68BVL, 2pole, 4pole with led indicator and test button intermediate relay MY4NJ


    Shipping&Packing

    Shipping


    Company Information

    QQ20170527142350_meitu_8


    OUR PRODUCTS


    CERTIFICATION


    PRPDUCTION EQUIPMENT

    SHOW ROOM

    Exhibition


    FAQ

    1.How do you control the quality?

    100% Auto inspection machine and manul testing together before packing.

    2.What's your payment terms?

    We usual accept 30% T/T payment in advance, and the balance payment before shipment,

    Samples cost can be paid by west union ,because it's fast and convient.

    3.Would you accept to USE our LOGO?

    If you have good quality,we can make OEM and ODM,custiomized specification.

    4.Can I get a sample for reference?

    We are gald to send samples for your testing, but you need to pay the express cost.

    5.What is your delivery time?

    Usually, 1-3days for samples, 10-20 days for bulk goods.

    6.What is your warranty time of the products?

    One year from the shipment date,we will offer replacement if you receive the defective or wrong items.
