    NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit

    Ask Lasest Price
    Brand Name : clion
    Model Number : NNC90F-1Z 60A
    Certification : CE, CQC,UL,TUV
    Price : Get Latest Price
    Payment Terms : TT
    Supply Ability : 50,000 pieces Per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

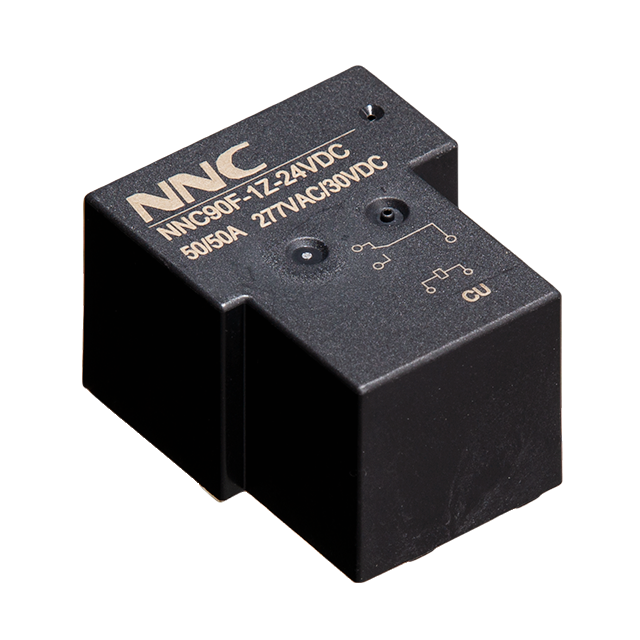

    NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit

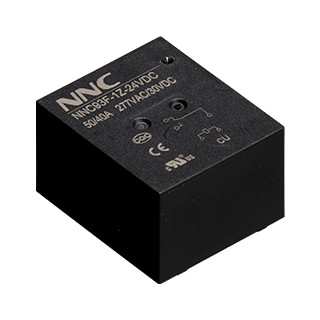

    Clion Rohs compliance NNC69FTL 1Z 2Z industrial control relay for Household Appliances - industrial control relay and Household Appliances

    Related Items
    NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuitNNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuitNNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuitNNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit

    Model Descriptions

    NNC90F-1ZL-12VDC

    ① Item no. NNC90F

    ② Contact form: 1H;1D;1Z

    ③ Coil Power: L:0.9W; Blank:1.5W

    ④ COil Voltage: Customized


    Specification

    Part NO.NNC90F
    Dimension32.2*27.4*19.4
    Contact FeatureForm1A,1B,1C
    Rated load60A 277VAC
    Contact resistance≤100mΩ
    MaterialSilver Alloy
    Electrical life≥1*10^4
    Mechanical life≥1*10^7
    Operate voltage (23℃)DC:≤75%*Rated voltage
    AC:≤75%*Rated voltage
    Release voltage (23℃)DC:≥10%*Rated voltage
    AC:≥10%*Rated voltage
    Maximum voltage (23℃)90-130%*Rated voltage
    Normal coil voltageDC5-110V
    AC5-110V
    Normal coil powerDC1.5W
    AC0.9VA
    Pick-up time≤20ms
    Release time≤15ms
    Dielectric strengthBetween Same-pole contacts1500VAC/1min(leakage current 1mA)
    Between Opposite-pole contacts
    Between contacts and coil2500VAC/1min(leakage current 1mA)
    Insulation resistance≥100mΩ(500VDC)
    Ambient temperature-45℃ ~85℃
    Ambient humidity45%-85%RH
    Vibration resistance10-55Hz (double amplitude: 1.5mm)
    InstallationPCB
    PackingInner boxPaper box(PCS)50
    Outer boxPaper box(PCS)500
    Dimension of the cartonCTN360*210*325mm
    Weight1PCApproximate: 33g
    1CTNG.W:17.5KG N.T:16.5KG

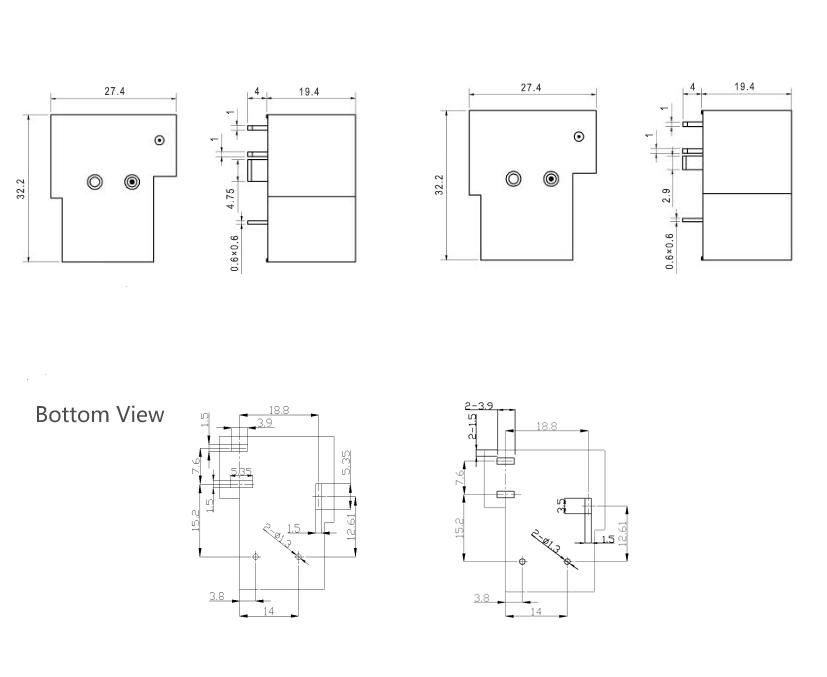

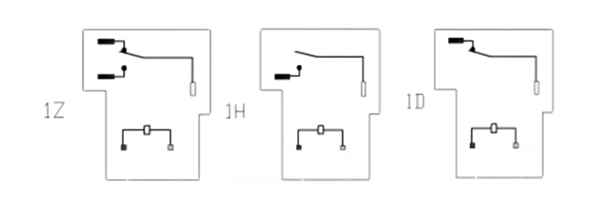

    Dimension/Wiring Diagram


    Shipping


    Company Information

    OUR PRODUCTS

    CERTIFICATION


    PRPDUCTION EQUIPMENT

    SHOW ROOM

    Exhibition


    OUR TEAM

    FAQ

    1.How do you control the quality?

    100% Auto inspection machine and manul testing together before packing.

    2.What's your payment terms?

    We usual accept 30% T/T payment in advance, and the balance payment before shipment,

    Samples cost can be paid by west union ,because it's fast and convient.

    3.Would you accept to USE our LOGO?

    If you have good quality,we can make OEM and ODM,custiomized specification.

    4.Can I get a sample for reference?

    we are gald to send samples for your testing, but you need to pay the express cost.

    5.What is your delivery time?

    Usually, 1-3days for samples, 10-20 days for bulk goods.

    6.What is your warranty time of the products?

    One year from the shipment date,we will offer replacement if you receive the defective or wrong items.
